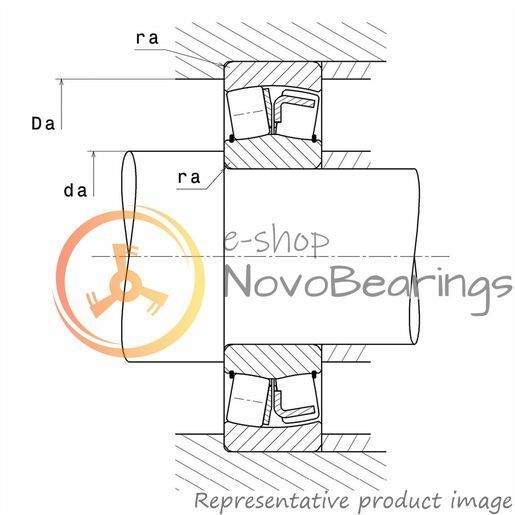

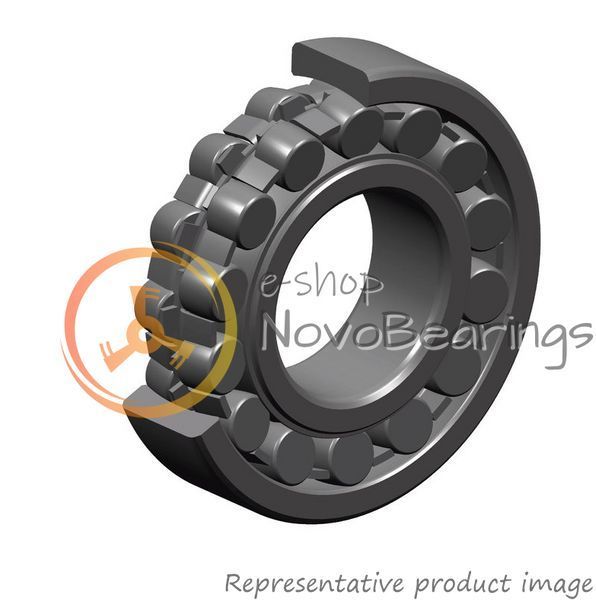

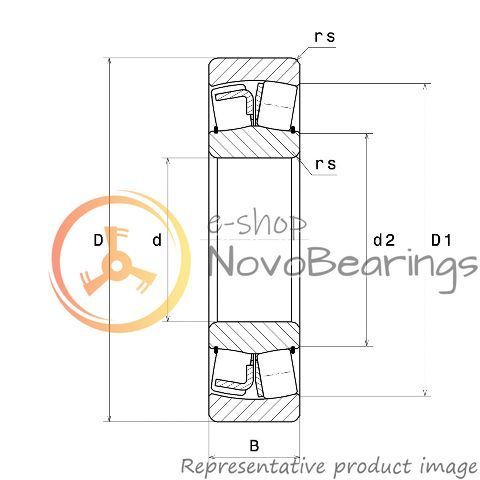

Double row open spherical roller bearing NTN 22324EAW33 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 120*260*86 mm.
Normal radial clearance.

The maximum rotation speed is 2500 rpm. Design dynamic load 1170 kN, design static load 1280 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
