  • 22317EMW33 NTN Bearing (85х180х60 mm.)
  • 22317EMW33 NTN Bearing (85х180х60 mm.)
  • 22317EMW33 NTN Bearing (85х180х60 mm.)
Features
Brand NTN
Designation 22317EMW33
Dimensions [d x D x W] 85х180х60 mm.
Bore diameter (d) 3.346 in. / 85 mm.
Outside diameter (D) 7.087 in. / 180 mm.
Width (B) 2.362 in. / 60 mm.
Weight 3.3602 lbs. / 7.408 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

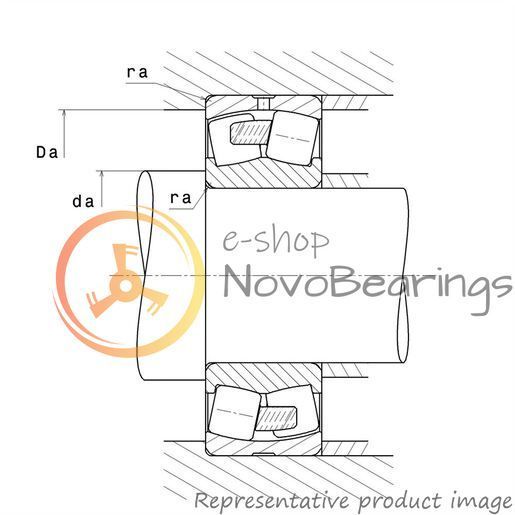

Double row open spherical roller bearing NTN 22317EMW33 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of brass. Bearing dimensions: 85*180*60 mm.
Normal radial clearance.

The maximum rotation speed is 3600 rpm. Design dynamic load 599 kN, design static load 604 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
