  • 22315EAKW33 NTN Bearing (75х160х55 mm.)
  • 22315EAKW33 NTN Bearing (75х160х55 mm.)
  • 22315EAKW33 NTN Bearing (75х160х55 mm.)
Features
Brand NTN
Designation 22315EAKW33

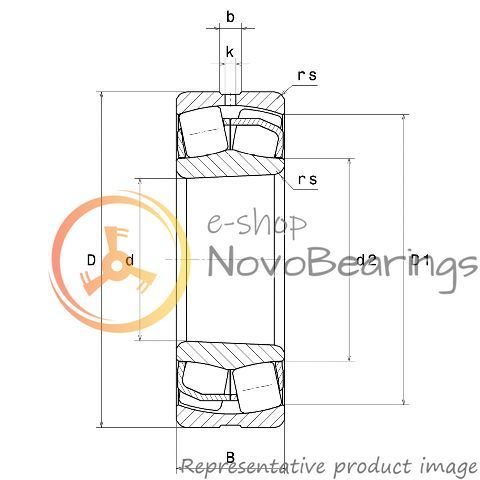

Dimensions [d x D x W] 75х160х55 mm.
Bore diameter (d) 2.953 in. / 75 mm.
Outside diameter (D) 6.299 in. / 160 mm.
Width (B) 2.165 in. / 55 mm.
Weight 2.4721 lbs. / 5.45 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

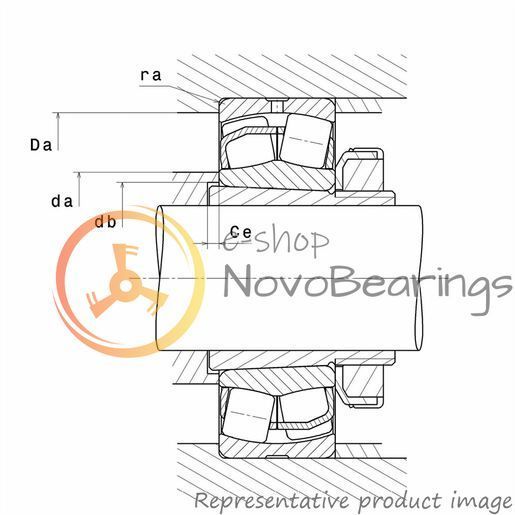

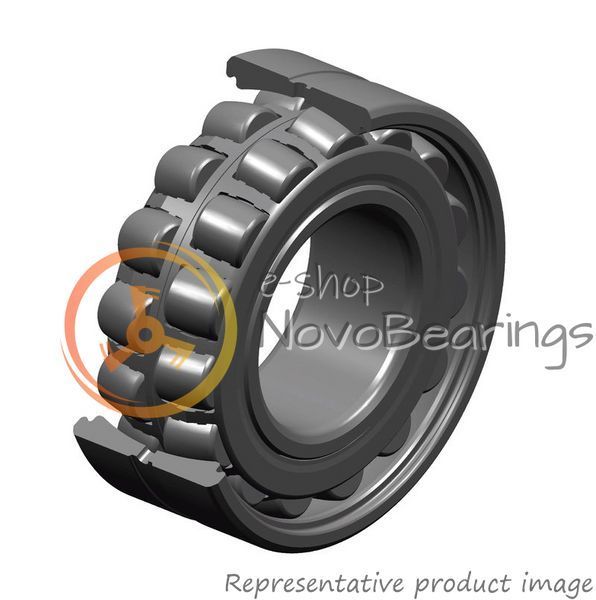

Double-row open spherical roller bearing NTN 22315EAKW33 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 75*160*55 mm.
Normal radial clearance.

The maximum rotation speed is 4200 rpm. Design dynamic load 491 kN, design static load 467 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22315EAKW33 NTN Bearing (75х160х55 mm.)

Out of stock
SKU: 22315EAKW33NTN75X160X55!#_
Price upon request
