  • 22314EMW33 NTN Bearing (70х150х51 mm.)
  • 22314EMW33 NTN Bearing (70х150х51 mm.)
  • 22314EMW33 NTN Bearing (70х150х51 mm.)
Features
Brand NTN
Designation 22314EMW33

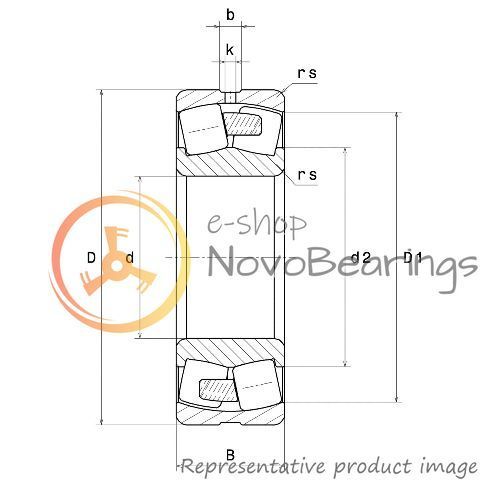

Dimensions [d x D x W] 70х150х51 mm.
Bore diameter (d) 2.756 in. / 70 mm.
Outside diameter (D) 5.906 in. / 150 mm.
Width (B) 2.008 in. / 51 mm.
Weight 1.9895 lbs. / 4.386 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

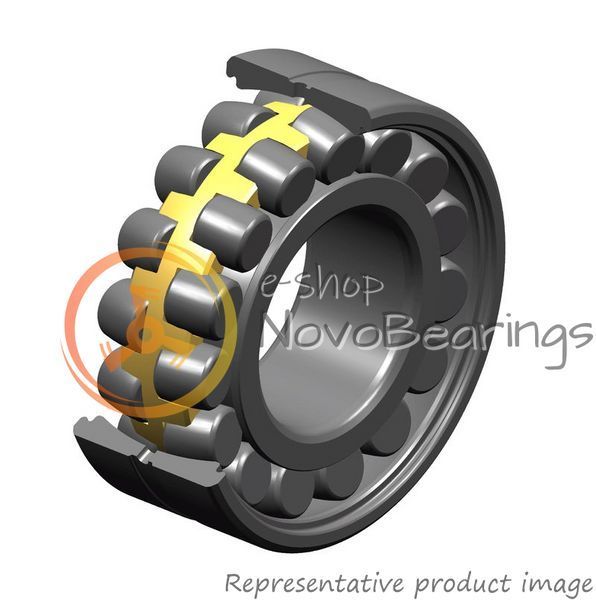

Double row open spherical roller bearing NTN 22314EMW33 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of brass. Bearing dimensions: 70*150*51 mm.
Normal radial clearance.

The maximum rotation speed is 4500 rpm. Design dynamic load 420 kN, design static load 396 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
