  • 22310EAW33C3 NTN Bearing (50х110х40 mm.)
  • 22310EAW33C3 NTN Bearing (50х110х40 mm.)
  • 22310EAW33C3 NTN Bearing (50х110х40 mm.)
Features
Brand NTN
Designation 22310EAW33C3

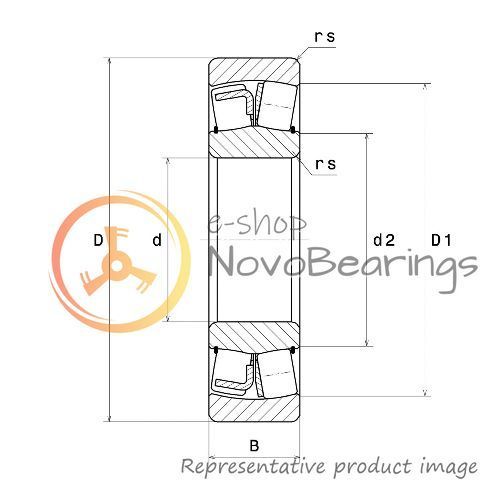

Dimensions [d x D x W] 50х110х40 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 4.331 in. / 110 mm.
Width (B) 1.575 in. / 40 mm.
Weight 0.8319 lbs. / 1.834 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

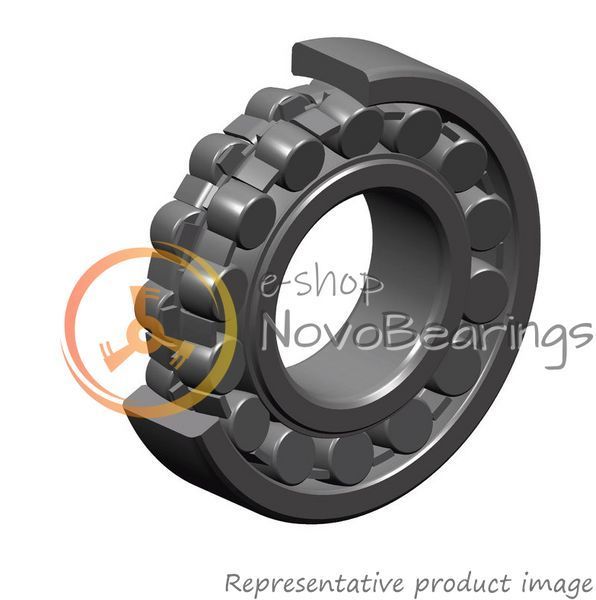

Double row open spherical roller bearing NTN 22310EAW33C3 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 50*110*40 mm.
Increased radial clearance (C3).

The maximum rotation speed is 6100 rpm. Design dynamic load 250 kN, design static load 232 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22310EAW33C3 NTN Bearing (50х110х40 mm.)

Out of stock
SKU: 22310EAW33C3NTN50X110X40!#_
Price upon request
