  • 22220EAKW33C3 NTN Bearing (100х180х46 mm.)
  • 22220EAKW33C3 NTN Bearing (100х180х46 mm.)
  • 22220EAKW33C3 NTN Bearing (100х180х46 mm.)
Features
Brand NTN
Designation 22220EAKW33C3
Dimensions [d x D x W] 100х180х46 mm.
Bore diameter (d) 3.937 in. / 100 mm.
Outside diameter (D) 7.087 in. / 180 mm.
Width (B) 1.811 in. / 46 mm.
Weight 2.1818 lbs. / 4.81 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

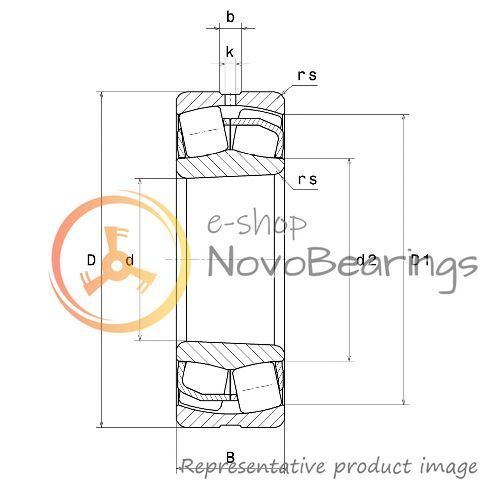

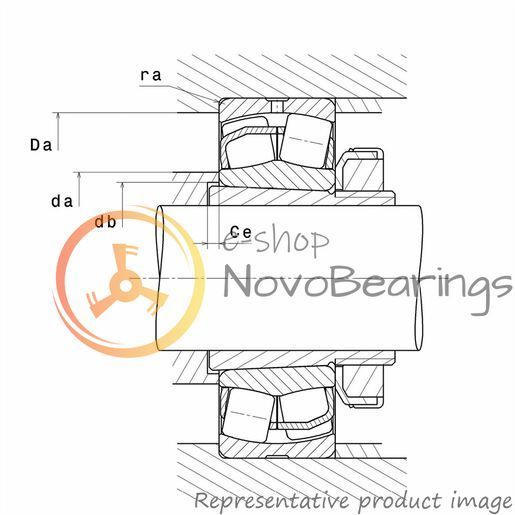

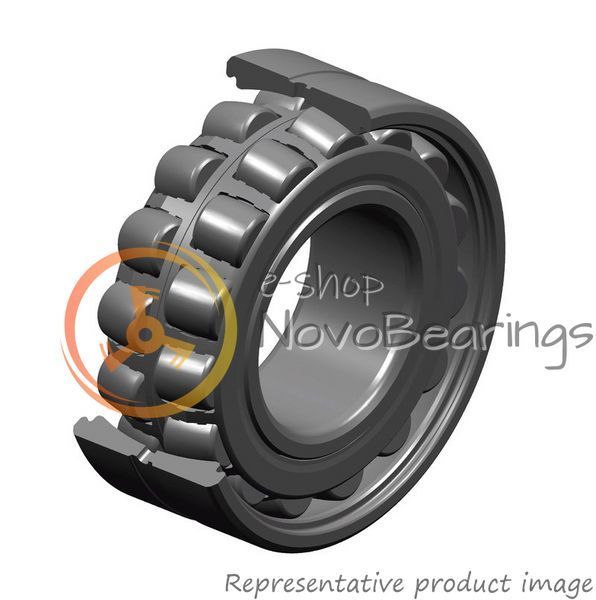

Double-row open spherical roller bearing NTN 22220EAKW33C3 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 100*180*46 mm.
Increased radial clearance (C3).

The maximum rotation speed is 4600 rpm. Design dynamic load 472 kN, design static load 495 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
