  • 22216EAKW33 NTN Bearing (80х140х33 mm.)
  • 22216EAKW33 NTN Bearing (80х140х33 mm.)
  • 22216EAKW33 NTN Bearing (80х140х33 mm.)
Features
Brand NTN
Designation 22216EAKW33

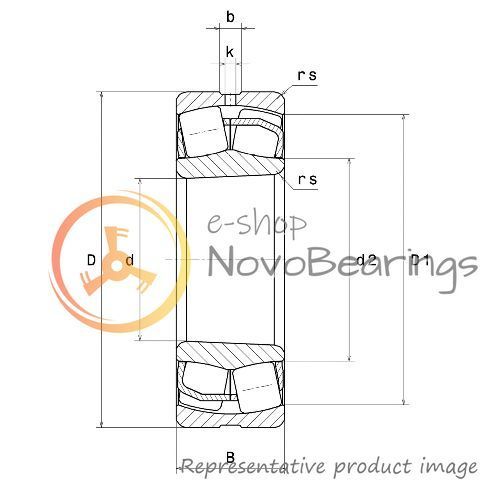

Dimensions [d x D x W] 80х140х33 mm.
Bore diameter (d) 3.15 in. / 80 mm.
Outside diameter (D) 5.512 in. / 140 mm.
Width (B) 1.299 in. / 33 mm.
Weight 0.9344 lbs. / 2.06 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

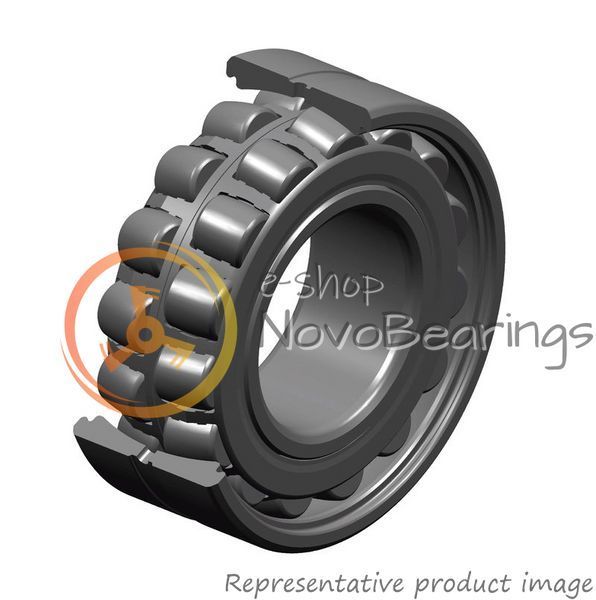

Double-row open spherical roller bearing NTN 22216EAKW33 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 80*140*33 mm.
Normal radial clearance.

The maximum rotation speed is 5800 rpm. Design dynamic load 278 kN, design static load 287 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22216EAKW33 NTN Bearing (80х140х33 mm.)

Out of stock
SKU: 22216EAKW33NTN80X140X33!#_
Price upon request
