  • 22215EAKW33 NTN Bearing (75х130х31 mm.)
  • 22215EAKW33 NTN Bearing (75х130х31 mm.)
  • 22215EAKW33 NTN Bearing (75х130х31 mm.)
Features
Brand NTN
Designation 22215EAKW33

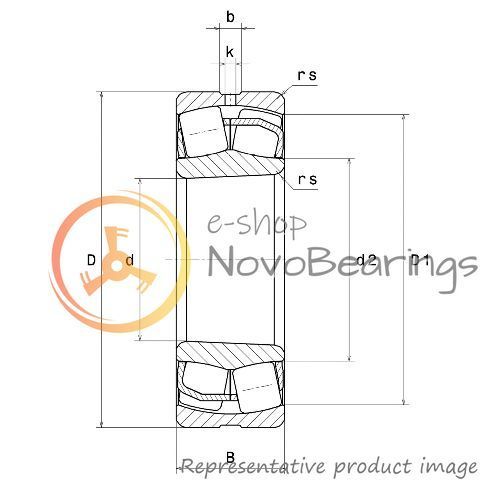

Dimensions [d x D x W] 75х130х31 mm.
Bore diameter (d) 2.953 in. / 75 mm.
Outside diameter (D) 5.118 in. / 130 mm.
Width (B) 1.22 in. / 31 mm.
Weight 0.7548 lbs. / 1.664 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

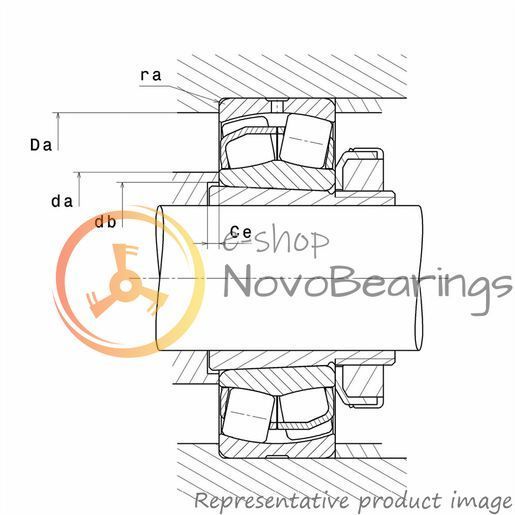

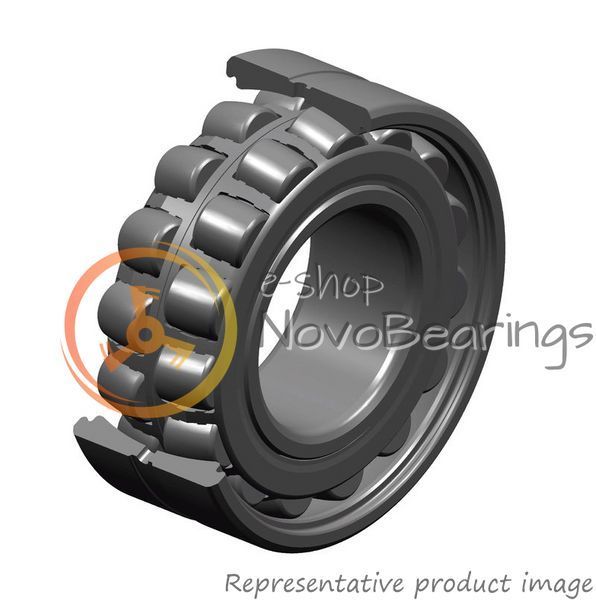

Double-row open spherical roller bearing NTN 22215EAKW33 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 75*130*31 mm.
Normal radial clearance.

The maximum rotation speed is 6200 rpm. Design dynamic load 244 kN, design static load 249 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22215EAKW33 NTN Bearing (75х130х31 mm.)

Out of stock
SKU: 22215EAKW33NTN75X130X31!#_
Price upon request
