  • 22210EAKW33C3 NTN Bearing (50х90х23 mm.)
  • 22210EAKW33C3 NTN Bearing (50х90х23 mm.)
  • 22210EAKW33C3 NTN Bearing (50х90х23 mm.)
Features
Brand NTN
Designation 22210EAKW33C3
Dimensions [d x D x W] 50х90х23 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 0.906 in. / 23 mm.
Weight 0.2767 lbs. / 0.61 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

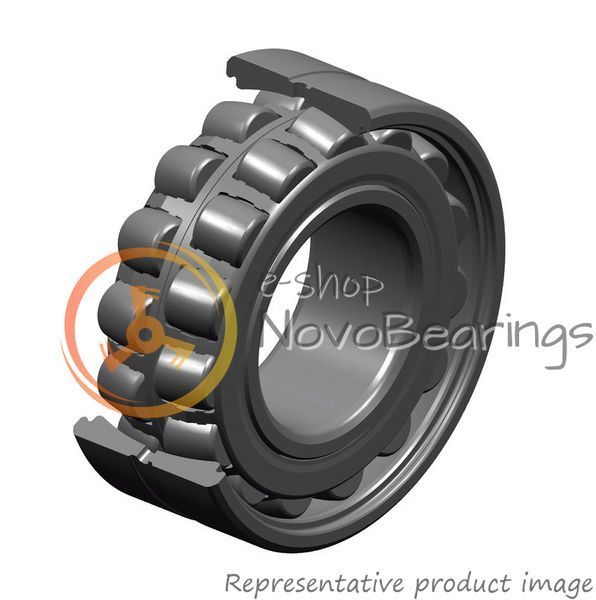

Double-row open spherical roller bearing NTN 22210EAKW33C3 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 50*90*23 mm.
Increased radial clearance (C3).

The maximum rotation speed is 9100 rpm. Design dynamic load 130 kN, design static load 124 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

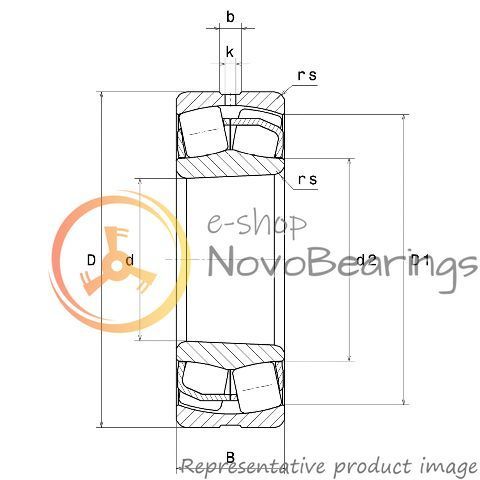

22210EAKW33C3 NTN Bearing (50х90х23 mm.)

Out of stock
SKU: 22210EAKW33C3NTN50X90X23!#_
Price upon request
