  • 22209EAW33C3 NTN Bearing (45х85х23 mm.)
  • 22209EAW33C3 NTN Bearing (45х85х23 mm.)
  • 22209EAW33C3 NTN Bearing (45х85х23 mm.)
Features
Brand NTN
Designation 22209EAW33C3
Dimensions [d x D x W] 45х85х23 mm.
Bore diameter (d) 1.772 in. / 45 mm.
Outside diameter (D) 3.346 in. / 85 mm.
Width (B) 0.906 in. / 23 mm.
Weight 0.2563 lbs. / 0.565 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

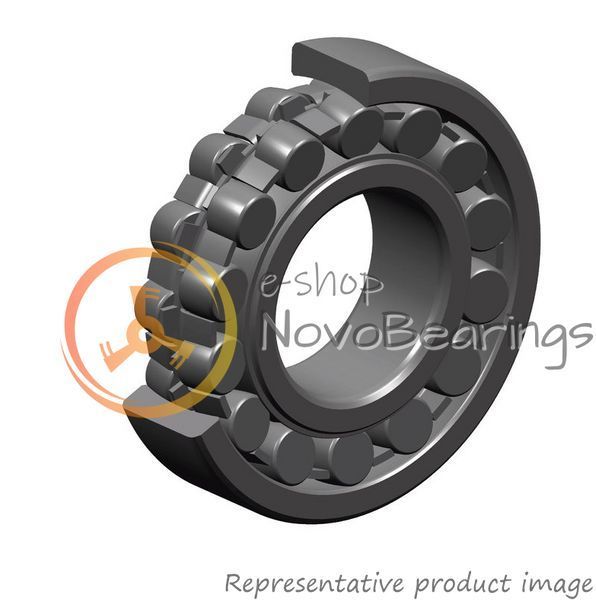

Double row open spherical roller bearing NTN 22209EAW33C3 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 45*85*23 mm.
Increased radial clearance (C3).

The maximum rotation speed is 9800 rpm. Design dynamic load 121 kN, design static load 113 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22209EAW33C3 NTN Bearing (45х85х23 mm.)

Out of stock
SKU: 22209EAW33C3NTN45X85X23!#_
Price upon request
