  • 1R17X24X20 NTN Bearing (17х24х20 mm.)
  • 1R17X24X20 NTN Bearing (17х24х20 mm.)
  • 1R17X24X20 NTN Bearing (17х24х20 mm.)
Features
Brand NTN
Designation 1R17X24X20

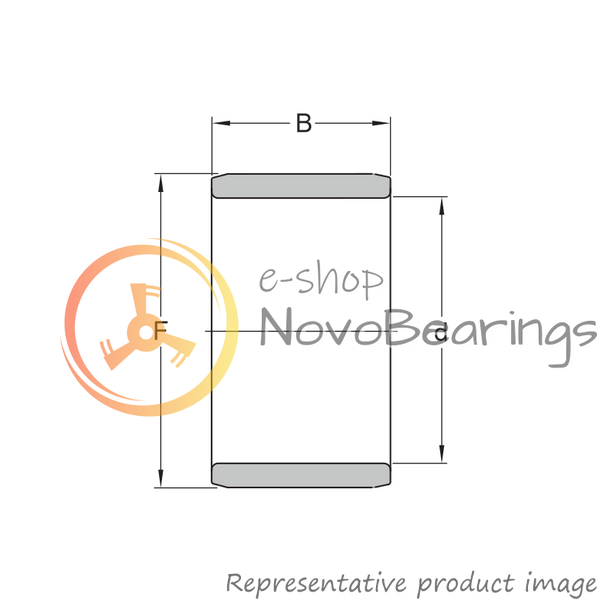

Dimensions [d x D x W] 17х24х20 mm.
Bore diameter (d) 0.669 in. / 17 mm.
Outside diameter (D) 0.945 in. / 24 mm.
Width (B) 0.787 in. / 20 mm.
IR Width (B) 0.787 in. / 20 mm.
Weight 0.0213 lbs. / 0.047 kg.
Sealing Without / Open
Radial internal clearance Special
Tolerance class Normal
Bearing Material Bearing steel
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

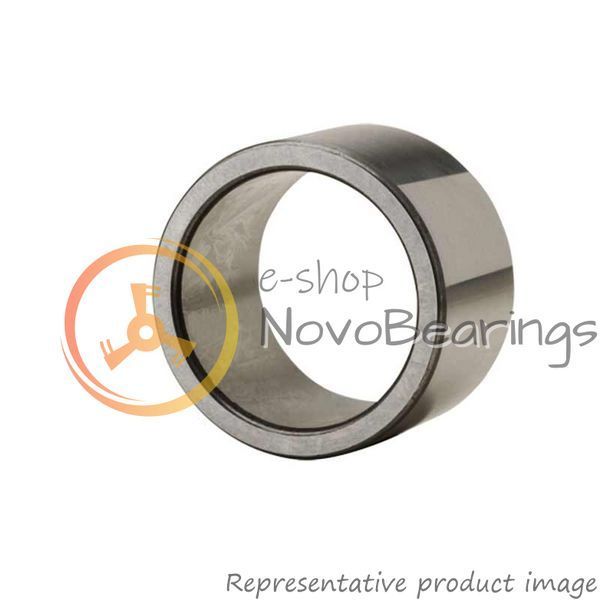

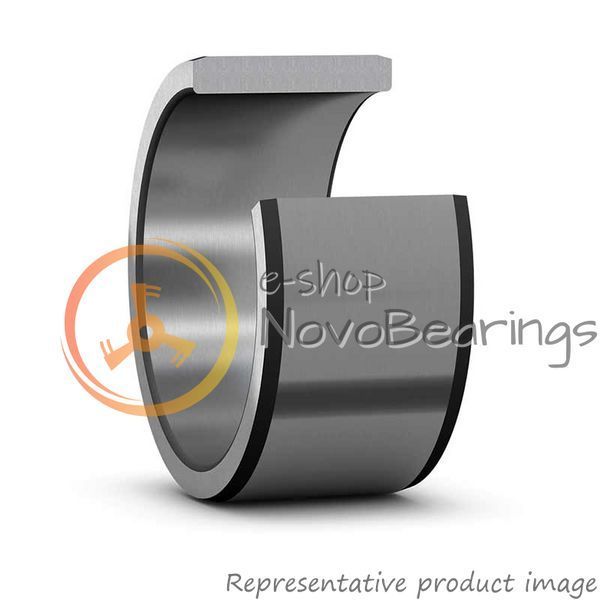

Inner ring for needle bearing NTN 1R17X24X20 with dimensions 17*24*20 mm.
Made from special low-carbon bearing steel, in accordance with high requirements for the precision of manufacturing bearing products. It is an integral part of the needle bearing.
