  • 1219S NTN Bearing (95х170х32 mm.)
  • 1219S NTN Bearing (95х170х32 mm.)
  • 1219S NTN Bearing (95х170х32 mm.)
Features
Brand NTN
Designation 1219S
Number of rows 2

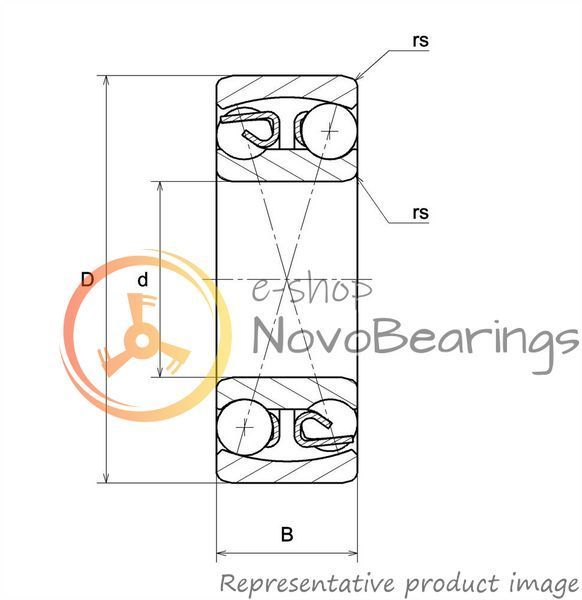

Dimensions [d x D x W] 95х170х32 mm.
Bore diameter (d) 3.74 in. / 95 mm.
Outside diameter (D) 6.693 in. / 170 mm.
Width (B) 1.26 in. / 32 mm.
Radial internal clearance Normal
Bearing Material Bearing steel
Cage Sheet metal
Sealing Without / Open
Bore type Cylindrical
Outer ring type Cylindrical
Tolerance class Normal
Weight 1.456 lbs. / 3.21 kg.
Description

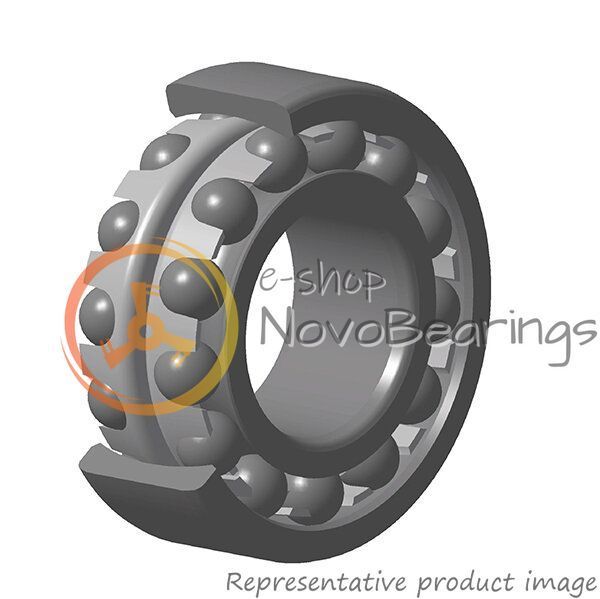

Double-row open self-aligning (self-aligning) spherical deep groove ball bearing NTN 1219S with a stamped steel cage for cylindrical shafts.

The maximum rotation speed is 3400 rpm. Design dynamic load 64 kN, design static load 27.1 kN.
Able to compensate for angular misalignments of the shaft due to the common spherical raceway of the outer ring. Self-centering due to internal design.

A new review or comment
Sign in with
Rate this item
Share

1219S NTN Bearing (95х170х32 mm.)

Out of stock
SKU: 1219SNTN95X170X32!#_
Price upon request
