  • 6306C3 SNR Bearing (30х72х19 mm.)
  • 6306C3 SNR Bearing (30х72х19 mm.)
  • 6306C3 SNR Bearing (30х72х19 mm.)
Features
Brand SNR
Designation 6306C3
Dimensions [d x D x W] 30х72х19 mm.
Bore diameter (d) 1.181 in. / 30 mm.
Outside diameter (D) 2.835 in. / 72 mm.
Width (B) 0.748 in. / 19 mm.
Weight 0.1542 lbs. / 0.34 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

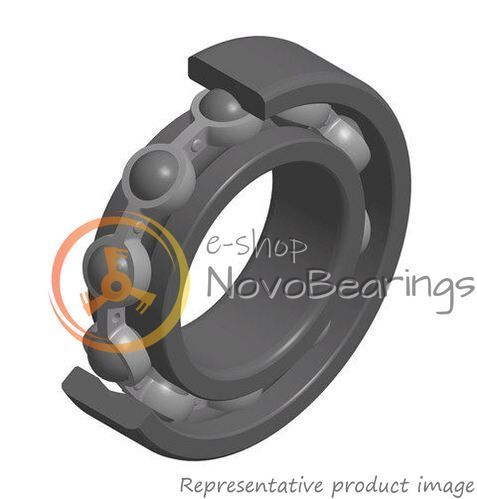

Single row open deep groove ball bearing SNR 6306C3.

Limit rotation speed 11000 rpm. Design dynamic load 28 kN, design static load 15.8 kN.
Increased internal radial clearance C3, may be designated 6306J30
