  • 6216C3 SNR Bearing (80х140х26 mm.)
  • 6216C3 SNR Bearing (80х140х26 mm.)
  • 6216C3 SNR Bearing (80х140х26 mm.)
Features
Brand SNR
Designation 6216C3
Dimensions [d x D x W] 80х140х26 mm.
Bore diameter (d) 3.15 in. / 80 mm.
Outside diameter (D) 5.512 in. / 140 mm.
Width (B) 1.024 in. / 26 mm.
Weight 0.635 lbs. / 1.4 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

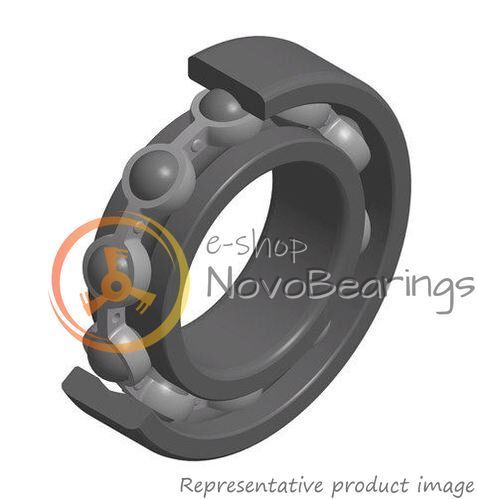

Single row open deep groove ball bearing SNR 6216C3.

Limit rotation speed 5200 rpm. Design dynamic load 73 kN, design static load 53 kN.
Increased internal radial clearance C3, may be designated 6216J30

A new review or comment
Sign in with
Rate this item
Share

6216C3 SNR Bearing (80х140х26 mm.)

Out of stock
SKU: 6216C3SNR80X140X26!#_
Price upon request
