  • 24040EMW33 SNR Bearing (200х310х109 mm.)
  • 24040EMW33 SNR Bearing (200х310х109 mm.)
  • 24040EMW33 SNR Bearing (200х310х109 mm.)
Features
Brand SNR
Designation 24040EMW33
Dimensions [d x D x W] 200х310х109 mm.
Bore diameter (d) 7.874 in. / 200 mm.
Outside diameter (D) 12.205 in. / 310 mm.
Width (B) 4.291 in. / 109 mm.
Weight 13.2449 lbs. / 29.2 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

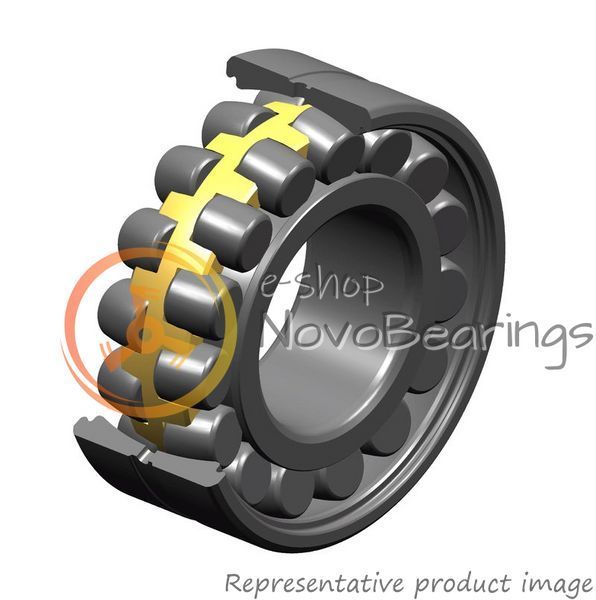

Double-row open spherical roller bearing SNR 24040EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

Limit rotation speed 2000 rpm. Design dynamic load 1520 kN, design static load 2120 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
