  • 23260EMW33C3 SNR Bearing (300х540х192 mm.)
  • 23260EMW33C3 SNR Bearing (300х540х192 mm.)
  • 23260EMW33C3 SNR Bearing (300х540х192 mm.)
Features
Brand SNR
Designation 23260EMW33C3

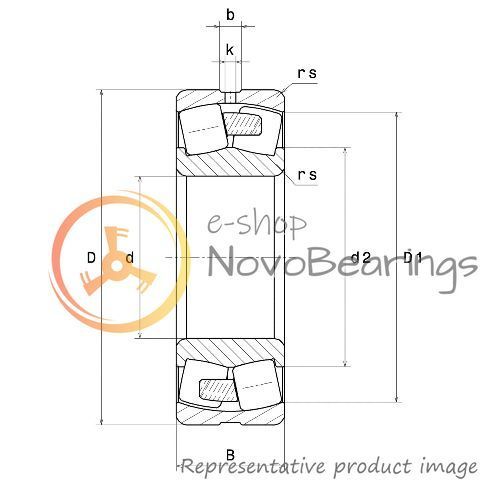

Dimensions [d x D x W] 300х540х192 mm.
Bore diameter (d) 11.811 in. / 300 mm.
Outside diameter (D) 21.26 in. / 540 mm.
Width (B) 7.559 in. / 192 mm.
Weight 92.8505 lbs. / 204.7 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

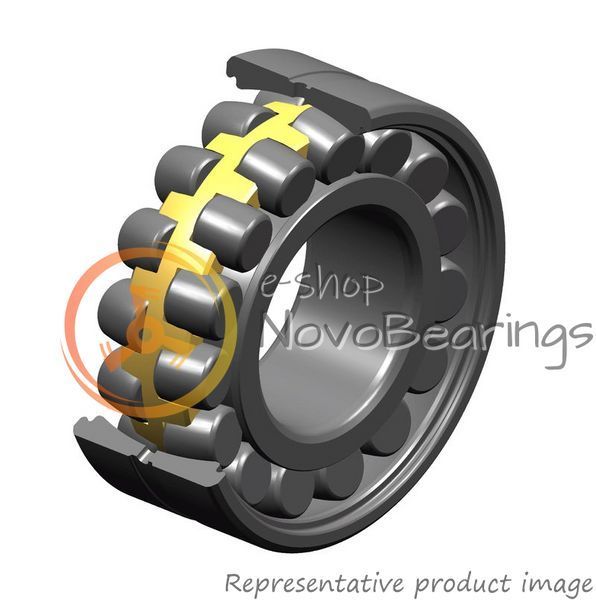

Double-row open spherical roller bearing SNR 23260EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1100 rpm. Design dynamic load 4880 kN, design static load 6880 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
