  • 22215EAW33ZZC3 SNR Bearing (75х130х31 mm.)
  • 22215EAW33ZZC3 SNR Bearing (75х130х31 mm.)
  • 22215EAW33ZZC3 SNR Bearing (75х130х31 mm.)
Features
Brand SNR
Designation 22215EAW33ZZC3

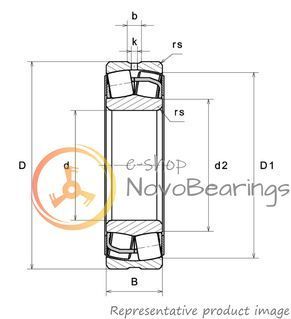

Dimensions [d x D x W] 75х130х31 mm.
Bore diameter (d) 2.953 in. / 75 mm.
Outside diameter (D) 5.118 in. / 130 mm.
Width (B) 1.22 in. / 31 mm.
Weight 0.7802 lbs. / 1.72 kg.
Sealing Shield on both sides
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

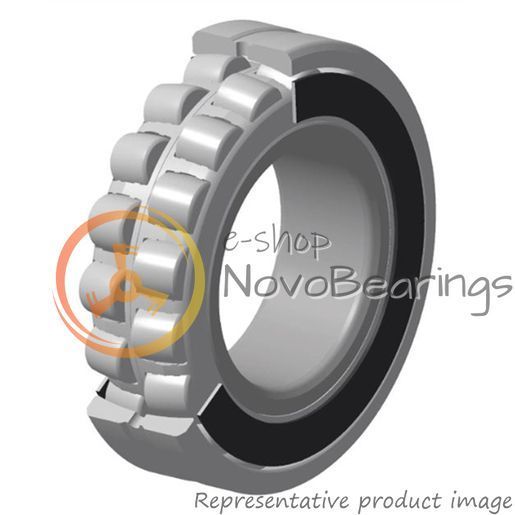

Double-row closed spherical roller bearing SNR 22215EAW33ZZC3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 6200 rpm. Design dynamic load 244 kN, design static load 249 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22215EAW33ZZC3 SNR Bearing (75х130х31 mm.)

Out of stock
SKU: 22215EAW33ZZC3SNR75X130X31!#_
Price upon request
