  • 11307G15 SNR Bearing (35х80х21 mm.)
  • 11307G15 SNR Bearing (35х80х21 mm.)
  • 11307G15 SNR Bearing (35х80х21 mm.)
Features
Brand SNR
Designation 11307G15
Number of rows 2

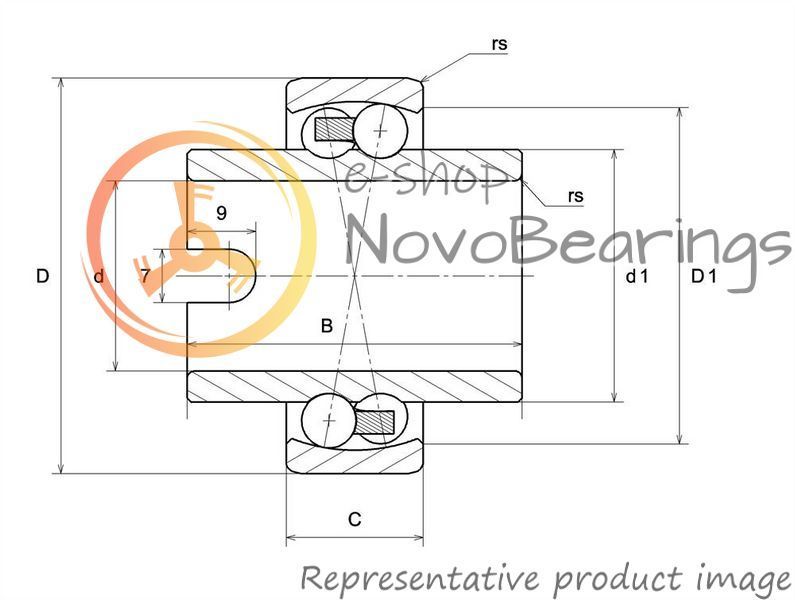

Dimensions [d x D x W] 35х80х21 mm.
Bore diameter (d) 1.378 in. / 35 mm.
Outside diameter (D) 3.15 in. / 80 mm.
Width (B) 0.827 in. / 21 mm.
Radial internal clearance Normal
Bearing Material Bearing steel
Cage Polymer
Sealing Without / Open
Bore type Cylindrical
Outer ring type Cylindrical
Tolerance class Normal
Weight 0.3674 lbs. / 0.81 kg.
Description

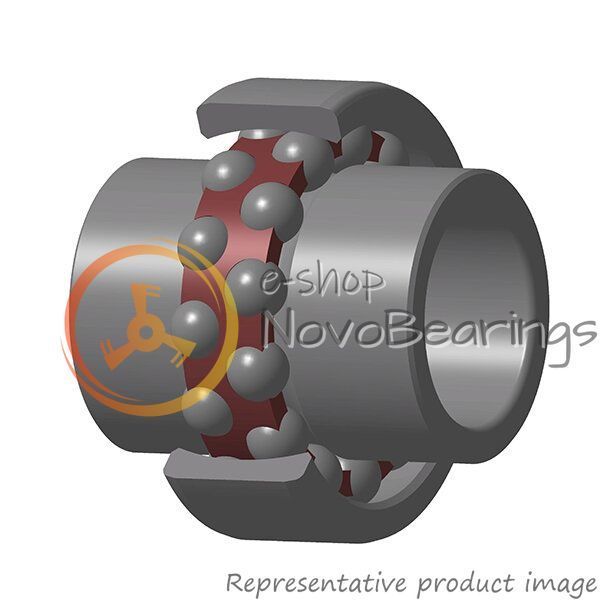

Double-row open self-aligning (self-aligning) spherical deep groove ball bearing SNR 11307G15 for cylindrical shafts, with a fixed wide inner ring and a polyamide cage.

The maximum rotation speed is 6100 rpm. Design dynamic load 25 kN, design static load 7.9 kN.
Able to compensate for angular misalignments of the shaft due to the common spherical raceway of the outer ring. Self-centering due to internal design.
