Features
Brand NTN
Designation NU2218G1

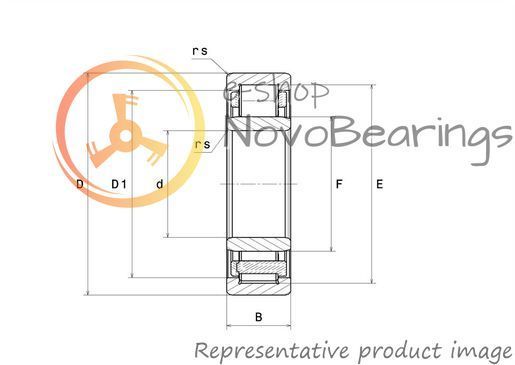

Dimensions [d x D x W] 90х160х40 mm.
Bore diameter (d) 3.543 in. / 90 mm.
Outside diameter (D) 6.299 in. / 160 mm.
Width (B) 1.575 in. / 40 mm.
Weight 1.5536 lbs. / 3.425 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

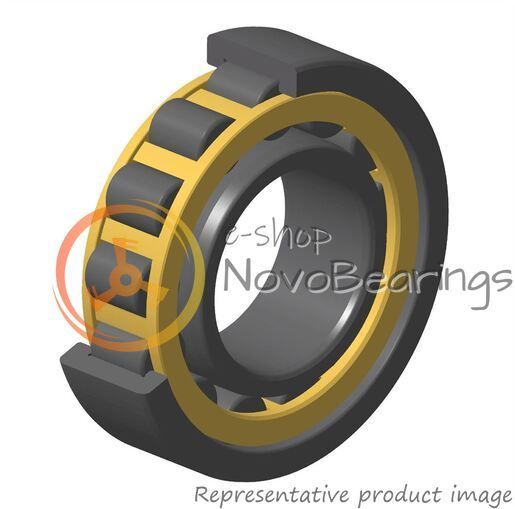

Single-row open radial roller bearing NTN NU2218G1 with dimensions 90*160*40 mm.
It has a split design and a massive brass cage. The outer ring has two guide flanges, the inner ring has no flanges. Designed to withstand one-sided radial load.

Designed dynamic load 197 kN, calculated static load 248 kN. Normal axial clearance.
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NU2218G1 NTN Bearing (90х160х40 mm.)

Out of stock
SKU: NU2218G1NTN90X160X40!#_
Price upon request
