  • 23264BL1KC4 NTN Bearing (320х580х208 mm.)
  • 23264BL1KC4 NTN Bearing (320х580х208 mm.)
  • 23264BL1KC4 NTN Bearing (320х580х208 mm.)
Features
Brand NTN
Designation 23264BL1KC4
Dimensions [d x D x W] 320х580х208 mm.
Bore diameter (d) 12.598 in. / 320 mm.
Outside diameter (D) 22.835 in. / 580 mm.
Width (B) 8.189 in. / 208 mm.
Weight 118.7506 lbs. / 261.8 kg.
Sealing Without / Open
Radial internal clearance Greater than C3 (C4)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

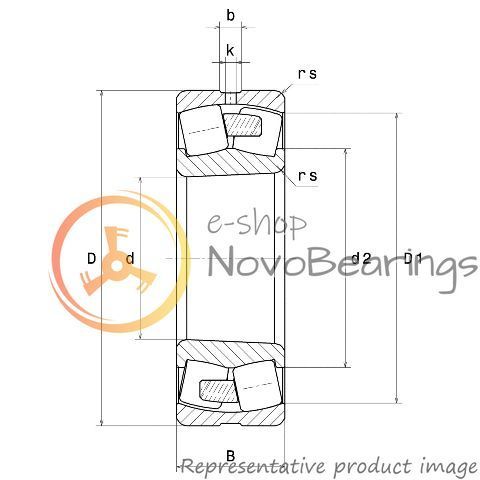

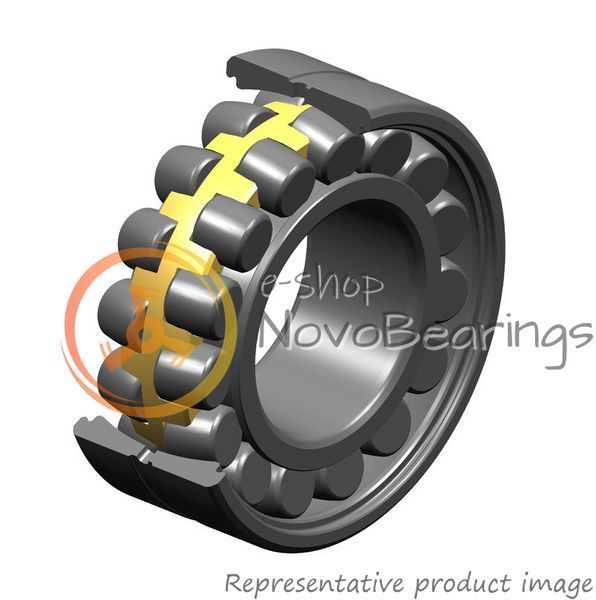

Double-row open spherical roller bearing NTN 23264BL1KC4 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of brass. Bearing dimensions: 320*580*208 mm.
Increased radial clearance (C4).

The maximum rotation speed is 820 rpm. Design dynamic load 5230 kN, design static load 7370 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
