  • 1308SC3 NTN Bearing (40х90х23 mm.)
  • 1308SC3 NTN Bearing (40х90х23 mm.)
  • 1308SC3 NTN Bearing (40х90х23 mm.)
Features
Brand NTN
Designation 1308SC3
Number of rows 2

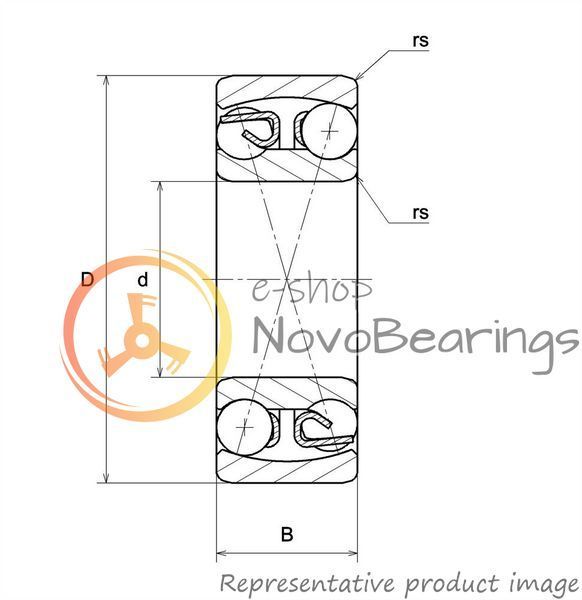

Dimensions [d x D x W] 40х90х23 mm.
Bore diameter (d) 1.575 in. / 40 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 0.906 in. / 23 mm.
Radial internal clearance Greater than Normal (C3)
Bearing Material Bearing steel
Cage Sheet metal
Sealing Without / Open
Bore type Cylindrical
Outer ring type Cylindrical
Tolerance class Normal
Weight 0.3266 lbs. / 0.72 kg.
Description

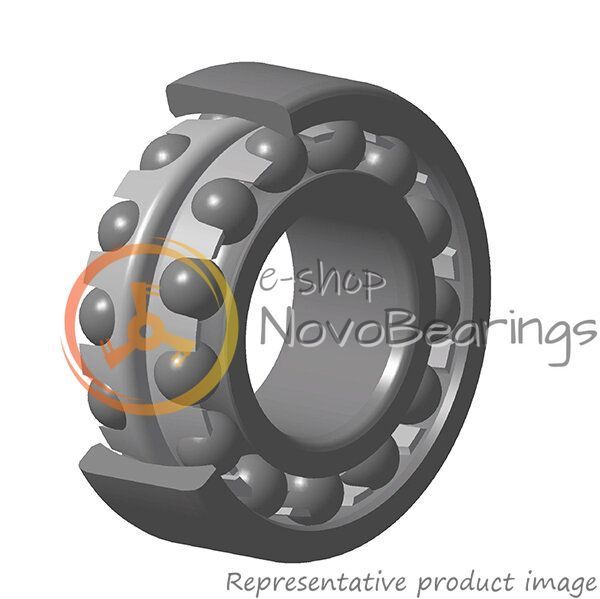

Double-row open self-aligning (self-aligning) spherical deep groove ball bearing NTN 1308SC3 with a stamped steel cage for cylindrical shafts.

The maximum rotation speed is 6700 rpm. Design dynamic load 29.8 kN, design static load 9.7 kN.
Able to compensate for angular misalignments of the shaft due to the common spherical raceway of the outer ring. Self-centering due to internal design.
